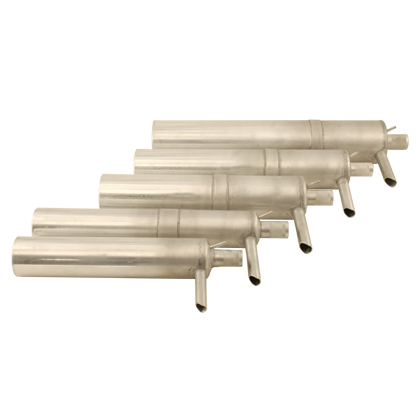

消音器 L/80K
产品编码:10.100.033
适用发动机型号:3W-157Xi B2, 3W-157Xi B2 CS, 3W-157Xi B2 TS, 3W-157Xi B2 TS CS, 3W-220i B4, 3W-220i B4 CS, 3W-80Xi, 3W-80Xi CS, 3W-80Xi TS, 3W-80Xi TS CS.
直径 | 85,00 mm |
长度 | 375,00 mm |
最大气缸容量 | 80,00 ccm |
Mussler manifold length | 16 – 19 cm |
3W mufflers have been specially matched and developed for our engines. They lend the engine good performance and very good running behaviour in the mid rotational-speed range. Noise development is minimized.
The muffler series can be used for nearly every model. Please select the matching muffler size based on the displacement of the engine used and not on the installation dimensions in the model. You will thereby avert damage to the power plant due to a too small muffler. The length of the manifold is decisive for good engine operation. Too short a manifold can overheat the engine thereby inflicting considerable damage on it. Running behaviour also deteriorates.
